EcoMaster MK4
The new EcoMaster MK4 sets new standards in terms of efficiency and reliability. As the successor to the MK3, it offers a longer service life and significant cost savings thanks to the use of the MX pump generation. Experience maximum performance of up to 3,000 bar for concrete repair, paint stripping and more - flexible and service-friendly for every application.
EcoMaster MK4: the compact and powerful ultra high-pressure pump unit for maintenance, refurbishment and removal
The EcoMaster MK4 sets new standards in terms of efficiency, reliability and ease of servicing for mobile ultra-high pressure units. As a consistent further development and successor to the tried-and-tested EcoMaster MK3, it has been optimised from the ground up to guarantee outstanding performance even under the most demanding conditions.
Greater efficiency thanks to the new MX pump generation
At the heart of the EcoMaster MK4 is the new MX pump generation. The efficiency of our tried-and-tested pump technology has been significantly increased thanks to further technical developments. This leads to a significant increase in service life, longer service life and longer maintenance intervals. The result: noticeable time and cost savings in operation.
Performance and versatility for professional applications
The reliable ultra-high pressure unit is available with operating pressures of 2,200, 2,750 and 3,000 bar. It was explicitly developed for a wide range of demanding tasks. While concrete refurbishment and surface preparation are classic areas of application, the EcoMaster MK4 is equally impressive when it comes to stripping paint from ships and cutting a wide range of materials in tough industrial applications. Its versatility makes it an indispensable partner for professionals who expect maximum performance and reliability.
The EcoMaster MK4 is used as a mobile 2-axle trailer and is powered by an economical Volvo diesel engine (EU Stage 3A / US EPA Tier 3 or EU Stage V), making it a flexible and powerful solution.
Intelligent control and maximum ease of servicing
The easy-to-understand WOMATIC 4 control system with operating status monitoring, pressure/speed control and unpressurised circulation ensures high operational reliability, low wear, long service life and minimised fuel consumption.
Another decisive advantage of the EcoMaster MK4 is its service-orientated design. The modular design and optimised accessibility to all maintenance and service parts result in less downtime and therefore lower maintenance costs. In addition, the vibration-free base frame and more storage space offer further comfort and efficiency in daily use.

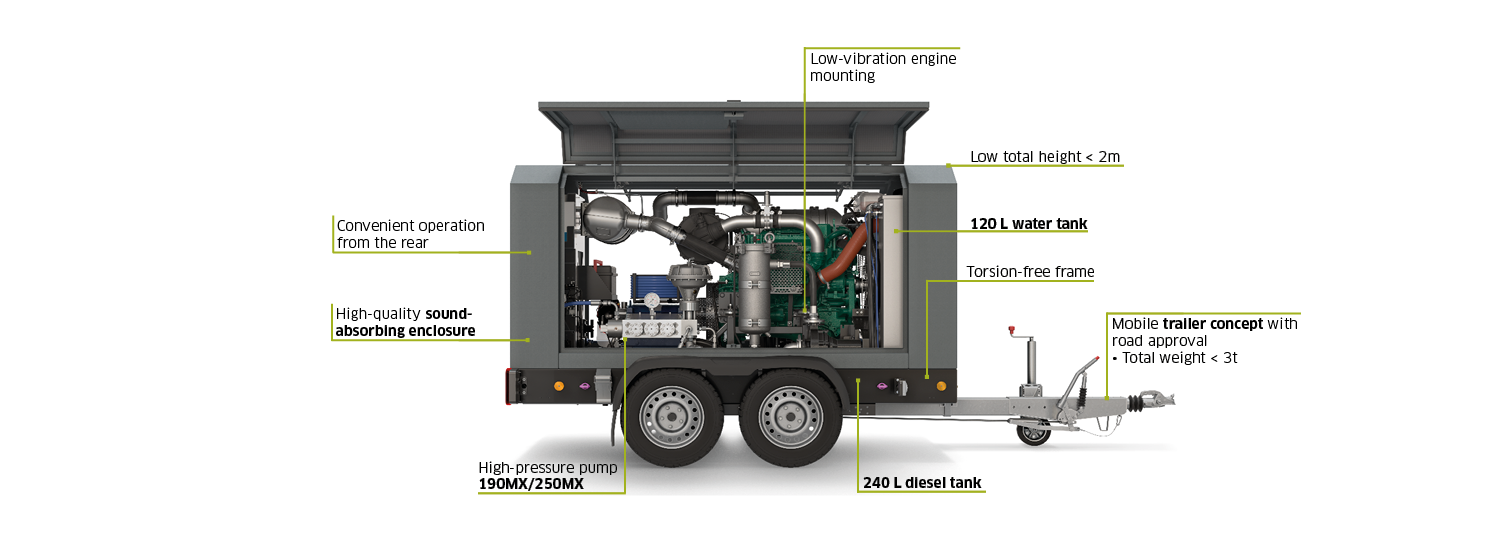

Thought-out right down to the very last detail
Thought-out right down to the very last detail: Powerful unit components
The perfect pump performance for your requirements: 190MX or 250MX
The EcoMaster MK3 is equipped with the reliable high-pressure plunger pump Type 190MX or Type 250MX. This gives you the choice to choose the perfect pump performance for your requirements.
The High-Pressure Plunger Pump Type 190MX offers the following performance parameters:
- 2,200 bar | 33.5 l/min
- 2,750 bar | 26.5 l/min
- 3,000 bar | 20.5 l/min
The High-Pressure Plunger Pump Type 250MX offers the following performance parameters:
- 2,200 bar | 40 l/min
- 2,750 bar | 31.5 l/min
- 3,000 bar | 24.5 l/min
We are happy to consult and support you for choosing the perfect pump performance configuration for your applications and requirements.
Powerful, reliable and fuel efficient drive
All EcoMaster MK4 are equipped with the powerful, reliable and fuel efficient off-road Volvo Diesel Engines.
Low exhaust emission
The chosen engine design combined with optimized DPF/SCR technology ensures the compliance with EU Stage V emissions. Alternatively a EU Stage 3A (US EPA Tier 3) engine is also available.
Central Control Unit: Interface for hydraulic and digital system processes
The unit is operated via a modern and intuitive control with a 4,3" display.
With integrated SPS and CAN master capability, this is the
perfect solution for high-pressure applications that require an innovative control and visualisation system.
Radio Remote Control: Robost and ergonomic
The radio remote control offers maximum operating comfort based on the latest technology and is suitable for use with diesel-powered high-pressure units. It has a radio range of up to 300 m and an operating time of up to 8 hours.
The intuitive graphical user interface offers the highest level of operating comfort: in addition to displaying the operating parameters and any fault messages that occur, it also enables bidirectional communication with the high-pressure unit.
Further information on radio remote control can be found here (PDF document).
An extract of the many application possibilites
EcoMaster MK4: Technical Data and Configuration Options
Technical Data
190MX Operating pressure (bar)
2,200 | 2,750 | 3,000
Technical Data
190MX flow rate (l/min)
33.5 | 26.5 | 20.5
Technical Data
250MX operating pressure (bar)
2,200 | 2,750 | 3,000
Technical Data
250MX flow rate (l/min)
40 | 31.5 | 24.5
Technical Data
Motortype
Combustion engine (diesel)
Technical Data
Max. motor rating (kW)
175
Technical Data
Diesel tank (l)
ca. 240
Technical Data
Water tank (l)
ca. 120
Technical Data
Weight (Stage 5 Version) (kg)
ca. 2,500
Technical Data
Dimensions (L × B × H) (mm)
4503 x 2240 x 2000
Configuration options
Control interface water tool EX-i
Configuration options
Additional remote control connection for use with
- HP release station with emergency stop (Advanced and Expert only) or
- external emergency stop (all device variants)
Configuration options
Operating mode extension: Maintaining rotation speed after high-pressure off
Configuration options
Operating mode extension: High-Pressure-On-Off via control cabinet
Configuration options
Telematic (in combination with a telematic contract)
Configuration options
Spark arrester in the exhaust pipe (not for stages 4 and 5)
Configuration options
Air shut-off damper (Chalwyn-Valve)
Configuration options
Crane lugs
Configuration options
Weather protection covers
Fitting water tools and accessories for your applications
Basic equipment (optional)
- High-pressure guns up to 3,000 bar
- Round jet nozzles
- Flat jet nozzle
- High-pressure hose
- Supply hose
- Control cable
Application tools
Surface cleaning
Pipe cleaning
