EcoMaster MK3
The EcoMaster MK3 is a compact, high-performance unit for the maintenance of large structures and industrial plants, but also for many other applications in the industry, in the maritime sector, in the construction industry as well as in municipial services. The ultra high-pressure water jet unit is designed as a mobile trailer with an economic diesel engine.

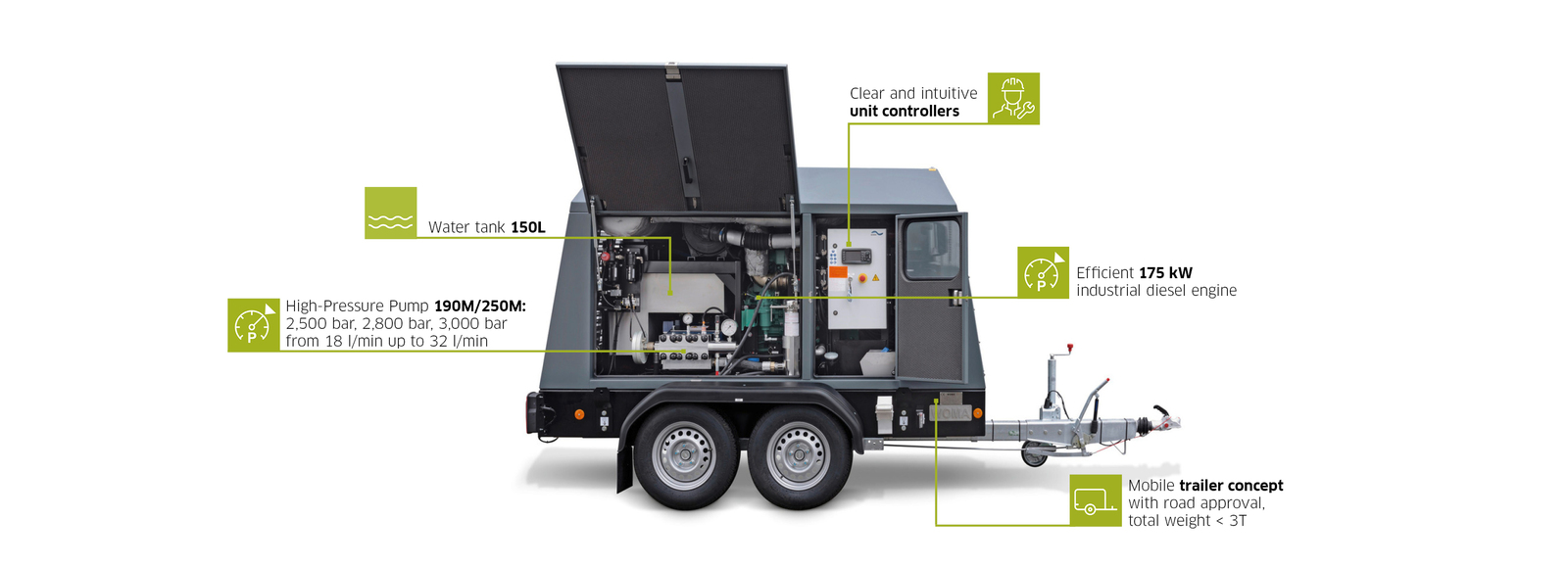

EcoMaster MK3: the compact and powerful ultra high-pressure pump unit for maintenance, refurbishment and removal
This ultra-high-pressure water jetting unit EcoMaster MK3 is designed on a mobile 2-axle trailer with an economical Volvo EU Stage 3A (US EPA Tier 3) or EU Stage V diesel engine.
Efficient and reliable
The reliable ultra-high-pressure unit is available with operating pressures from 2.500, 2.800 and 3.000 bar. It was specifically designed for the removal of coating and concrete refurbishment, as well as for the separation and cutting of various materials in the harshest industrial operating conditions.
The easy to understand WOMATIC 4-Control with operational status monitoring, pressure-rpm regulation and pressureless circulation ensures high operational safety, low wear and tear, long service life, and last but not least, minimal fuel consumption.
Thought-out right down to the very last detail
Thought-out right down to the very last detail: Powerful unit components
The perfect pump performance for your requirements: 190M oder 250M
The EcoMaster MK3 is equipped with the reliable high-pressure plunger pump Type 190M or Type 250M. This gives you the choice to choose the perfect pump performance for your requirements.
The High-Pressure Plunger Pump Type 190M offers the following performance parameters:
- 2.500 bar | 26 l/min
- 2.800 bar | 20 l/min
- 3.000 bar | 18 l/min
The High-Pressure Plunger Pump Type 250M offers the following performance parameters:
- 2.500 bar | 32 l/min
- 2.800 bar | 25 l/min
- 3.000 bar | 21 l/min
We are happy to consult and support you for choosing the perfect pump performance configuration for your applications and requirements.
Powerful, reliable and fuel efficient drive
All EcoMaster MK3 are equipped with the powerful, reliable and fuel efficient off-road Volvo Diesel Engines.
Low exhaust emission
The chosen engine design combined with optimized DPF/SCR technology ensures the compliance with EU Stage V emissions. Alternatively a EU Stage 3A (US EPA Tier 3) engine is also available.
Central Control Unit: Interface for hydraulic and digital system processes
The unit is operated via a modern and intuitive control with a 4,3" display.
With integrated SPS and CAN master capability, this is the
perfect solution for high-pressure applications that require an innovative control and visualisation system.
Radio Remote Control: Robost and ergonomic
The radio remote control offers maximum operating comfort based on the latest technology and is suitable for use with diesel-powered high-pressure units. It has a radio range of up to 300 m and an operating time of up to 8 hours.
The intuitive graphical user interface offers the highest level of operating comfort: in addition to displaying the operating parameters and any fault messages that occur, it also enables bidirectional communication with the high-pressure unit.
Further information on radio remote control can be found here (PDF document).
An extract of the many application possibilites
EcoMaster MK3: Technical Data and Configuration Options
Technical Data
190M Operating pressure (bar)
2,500 | 2,800 | 3,000
Technical Data
190M flow rate (l/min)
26 | 20 | 18
Technical Data
250M operating pressure (bar)
2,500 | 2,800 | 3,000
Technical Data
250M flow rate (l/min)
32 | 25 | 21
Technical Data
Motortype
Combustion engine (diesel)
Technical Data
Max. motor rating (kW)
175
Technical Data
Diesel tank (l)
ca. 200
Technical Data
Water tank (l)
ca. 150
Technical Data
Weight (Stage 5 Version) incl. operating material (kg)
ca. 2,980
Technical Data
Dimensions (L × B × H) (mm)
4,450 × 2,030 × 2,320
Configuration options
Control interface water tool EX-i
Configuration options
Additional remote control connection for use with
- HP release station with emergency stop (Advanced and Expert only) or
- external emergency stop (all device variants)
Configuration options
Operating mode extension: Maintaining rotation speed after high-pressure off
Configuration options
Operating mode extension: Automatic speed control for dump gun variants
Configuration options
Operating mode extension: High-Pressure-On-Off via control cabinet
Configuration options
Operating mode extension: Dump-gun operation for Expert variants
Configuration options
Telematic (in combination with a telematic contract)
Configuration options
Spark arrester in the exhaust pipe (not for stages 4 and 5)
Configuration options
Air shut-off damper (Chalwyn-Valve)
Configuration options
Crane lugs
Configuration options
Weather protection covers
Fitting water tools and accessories for your applications
Basic equipment (optional)
- High-pressure guns up to 3,000 bar
- Round jet nozzles
- Flat jet nozzle
- High-pressure hose
- Supply hose
- Control cable
Application tools
Surface cleaning
Pipe cleaning
