Ship Industry and shipyards
For the ship industry, WOMA offers a huge variety of high-pressure and ultra-high-pressure pumps, pump units and water jetting tools for cleaning, stripping, cutting and seperating. The high-pressure applications are thus to be found on deck, below the deck, on the ship's side and also in the harbour.
Ultra-high-pressure cleaning, blasting and surface treatment for all areas of and on the ship
WOMA high-pressure und ultra-high-pressure systems are, due to the high versatility in terms of handling and applications, the ideal solution for the cleaning and maintenance of the entire ship technology: from above and below the waterline, including superstructures, up to tanks and pipelines. The possible applications range from cleaning and removal of paint and coating systems, to the interiour cleaning of tanks to the cutting of metals.

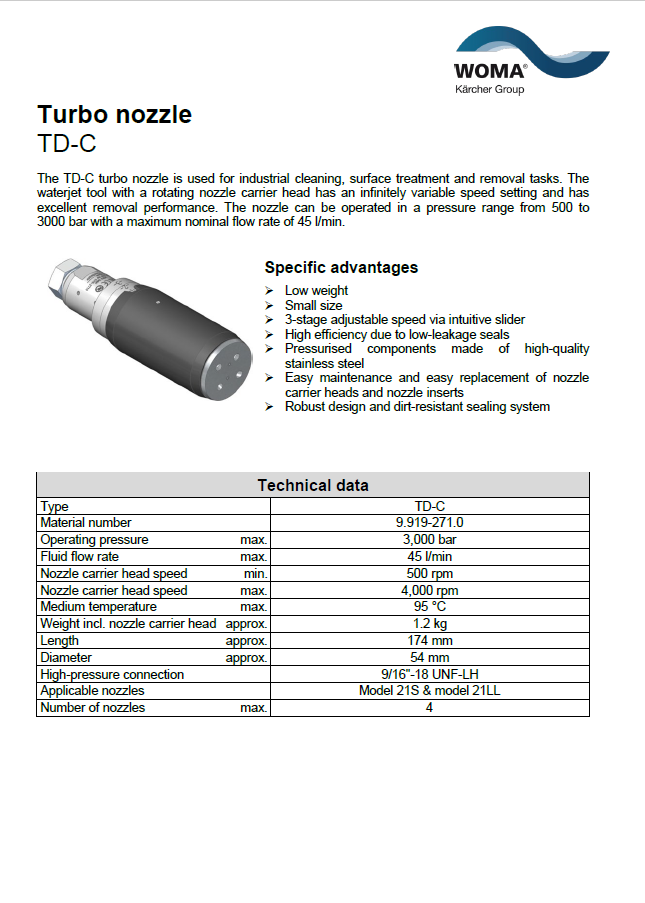

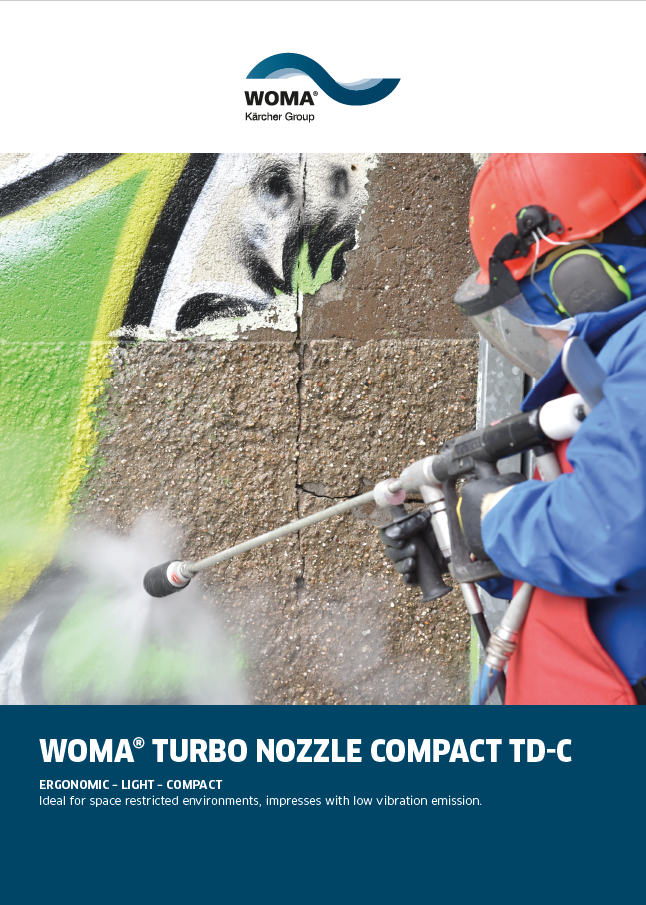

TURBO NOZZLE COMPACT TD-C: ERGONOMIC – LIGHT – COMPACT
The TD-C is used for industrial cleaning, surface treatment and removal tasks and is designed for a pressure from 500 bar to 3,000 bar and a maximum nominal flow rate of max. 45 l/min.
The TD-C is a lightweight and compact alternative to the existing TD-3000 SCS series. In direct comparison, the dimensions and weight have been reduced. The nozzle can therefore also be used in confined cleaning environments and impresses with its low vibration emissions.
Advantages at a glance:
■ Optimised with substantially reduced dimensions
■ 3-stage speed setting via intuitive slider control
■ Speed regulation via magnetic field-oriented induction brake, wear-free and without friction loss
■ Nozzle carrier head with hydraulic self-drive through adjusted nozzle openings
■ Easy maintenance and short set-up times – no special tools required.
Application and areas of use:
■ From 500 bar cleaning of surfaces, e.g. graffiti removal
■ From 1,000 bar treatment of surfaces, e.g. roughening
■ From 2,500 bar removal of surfaces, e.g. concrete removal
Video: Turbo Nozzle TD-C
Further product solutions for cleaning and decoating of ships

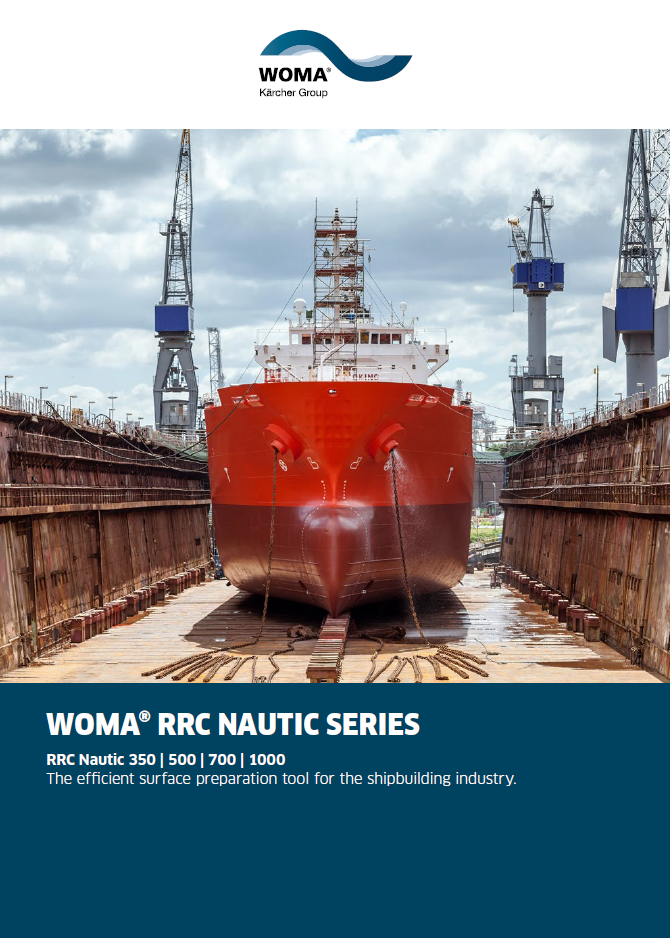

RRC NAUTIC: A NEW GENERATION OF WOMA SURFACE PREPARATION TOOLS
VERSATILE IN USE, HIGHLY EFFICIENT.
The RRC Nautic series is a surface preparation tool specially developed for cleaning and stripping vertical or inclined surfaces in the marine industry. It is particularly suitable for treating rusty areas, paint stripping and surface preparation.
Applications
■ Cleaning:
removal of dirt, seaweed and marine growth from the ship's hull (up to 600 bar)
■ Decoating/Paint Stripping:
removing old layers of paint and varnish in preparation for repainting
■ Surface preparation:
preparation of surfaces for the application of anti-corrosion coatings
■ Always the optimal setting: Individual support arm segments can be exchanged and rotated via the flanges
■ Suitable for mounting on loading arms, dockside arms, aerial work platforms and device carriers
■ Modular product design: complete assembly as well as arm and cleaning unit also available separately
■ Infinitely adjustable rotation speed (500 to 3,000 rpm)
■ Standards for surface preparation:
-SA 1-1.5 up to 1,500 bar
- SA 2-2.5 up to 3,200 bar
■ Optimised extraction efficiency: No wastewater emissions thanks to CFD (flow simulation) simulated housing design
■ Parallel arrangement of the rotary bushings and nozzle elements to the direction of motion
■ Flexible adaptation of the removal tool to changing surfaces for optimised cleaning and removal results
■ Service-friendly design concept, easy maintenance and repair without special tools
Technical Data RRC Nautic
Working width (mm)
RRC Nautic 350
350
RRC Nautic 500
500
RRC Nautic 700
700
RRC Nautic 1000
1000
Medium temperature max. (°C)
RRC Nautic 350
60°C
RRC Nautic 500
60°C
RRC Nautic 700
60°C
RRC Nautic 1000
60°C
Working Pressure (bar)
RRC Nautic 350
up to 3,200 bar
RRC Nautic 500
up to 3,200 bar
RRC Nautic 700
up to 3,200 bar
RRC Nautic 1000
up to 3,200 bar
Volume flow (l/min)
RRC Nautic 350
50 l/min
RRC Nautic 500
50 l/min
RRC Nautic 700
100 l/min
RRC Nautic 1000
100 l/min
Speed (rpm)
RRC Nautic 350
3000 rpm
RRC Nautic 500
3000 rpm
RRC Nautic 700
3000 rpm
RRC Nautic 1000
3000 rpm
Weight (kg)
RRC Nautic 350
approx. 150 kg
RRC Nautic 500
approx. 160 kg
RRC Nautic 700
approx. 180 kg
RRC Nautic 1000
approx. 240 kg
Operating pressure of the hydraulik motor
(for continous operation) (bar)
RRC Nautic 350
max. 350 bar
RRC Nautic 500
max. 350 bar
RRC Nautic 700
max. 350 bar
RRC Nautic 1000
max. 350 bar
Volumenstrom des Hydraulikmotors
(bei max. Geschwindigkeit) (l/min)
RRC Nautic 350
28,8 l/min
RRC Nautic 500
28,8 l/min
RRC Nautic 700
28,8 l/min
RRC Nautic 1000
28,8 l/min
Drive power at max. speed
(continuous) (kW)
RRC Nautic 350
5.6 kW
RRC Nautic 500
5.6 kW
RRC Nautic 700
5.6 kW
RRC Nautic 1000
5.6 kW
Direction of rotation (hydraulic motor)
RRC Nautic 350
selectable
RRC Nautic 500
selectable
RRC Nautic 700
selectable
RRC Nautic 1000
selectable
Length approx. (mm)
RRC Nautic 350
790 mm
RRC Nautic 500
980 mm
RRC Nautic 700
1,150 mm
RRC Nautic 1000
1,450 mm
Width approx. (mm)
RRC Nautic 350
980 mm
RRC Nautic 500
1,120 mm
RRC Nautic 700
980 mm
RRC Nautic 1000
1,120 mm
Height ca. (mm)
RRC Nautic 350
550 mm
RRC Nautic 500
550 mm
RRC Nautic 700
570 mm
RRC Nautic 1000
570 mm
Hydraulic connections
RRC Nautic 350
G ¾”
RRC Nautic 500
G ¾”
RRC Nautic 700
G ¾”
RRC Nautic 1000
G ¾”
High-pressure connection
RRC Nautic 350
1 x 9/16-18 UNF LH
RRC Nautic 500
1 x 9/16-18 UNF LH
RRC Nautic 700
2 x 9/16-18 UNF LH
RRC Nautic 1000
2 x 9/16-18 UNF LH
The right solution with our experience
If you need advice and support for your application, our application technology experts can draw on decades of cross-industry experience to find the right system solution with the right parameters for your task.
Further high-pressure applications for the maritime industry
Cleaning of ship hulls and buoys
High-pressure water jetting ensures the best possible cleaning effect of all processes for surface treatment. The residual concentrations of salt, chloride and other substances are minimal.
Removing paint from ship hulls
High pressure water jetting enables and extremely careful and controlled removal of coatings, impurities and deposits without damaging the base material.
